Conical Connection Implant Systems

RBM Treatments
RBM treatment process is achieved by “high-speed particle blasting”, using suitable & resorbable hardened Calcium Phosphate particles.
Usage of Calcium Phosphate as the blasting material also eliminates the need of using strong acids for the removal of blasting material remnants…

Read More

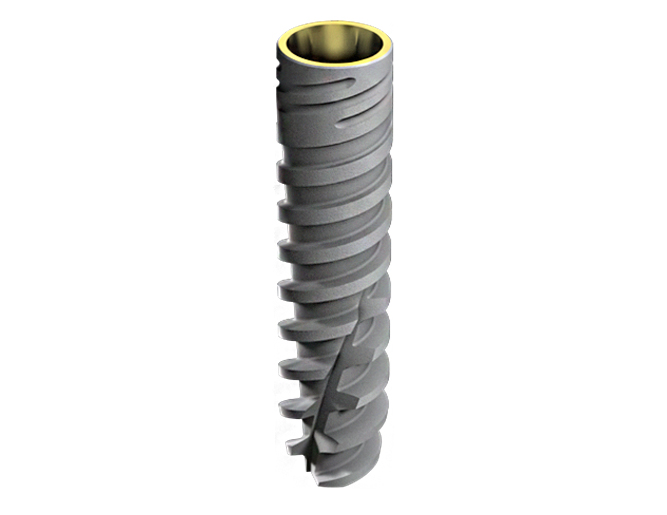

Fix Konisch ND Dental Implant. RBM Surface, Titanium Alloy - Ti 6AI 4V ELI
Read More

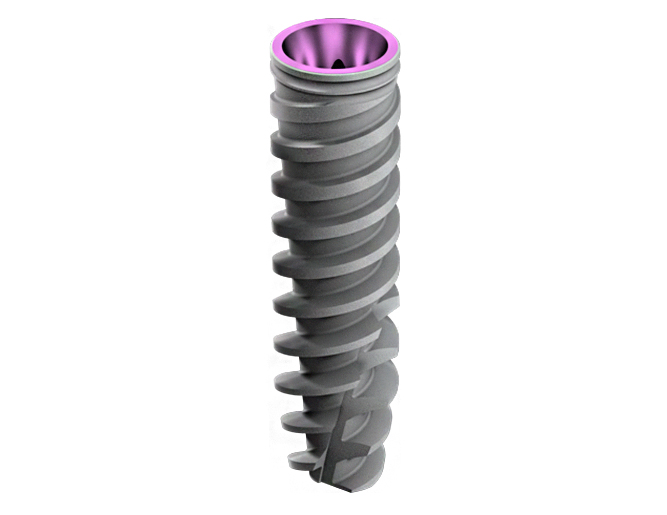

Fix Konisch SD Dental Implant 3.5. RBM Surface, Titanium Alloy - Ti 6AI 4V ELI
Read More

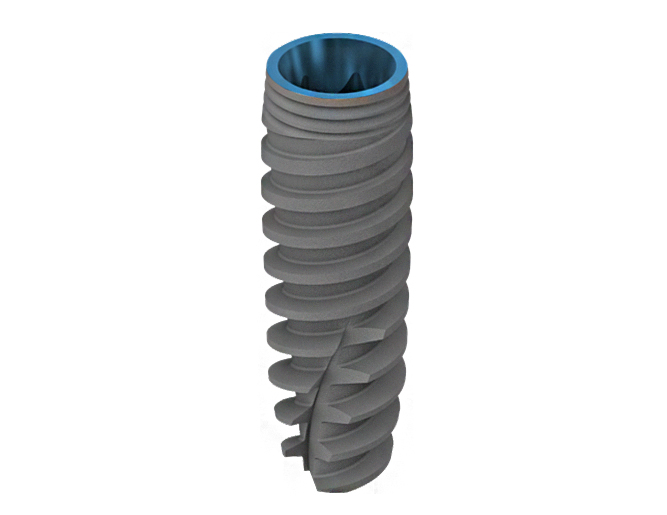

Fix Konisch WD Dental Implant 4.3. RBM Surface, Titanium Alloy - Ti 6AI 4V ELI
Read More

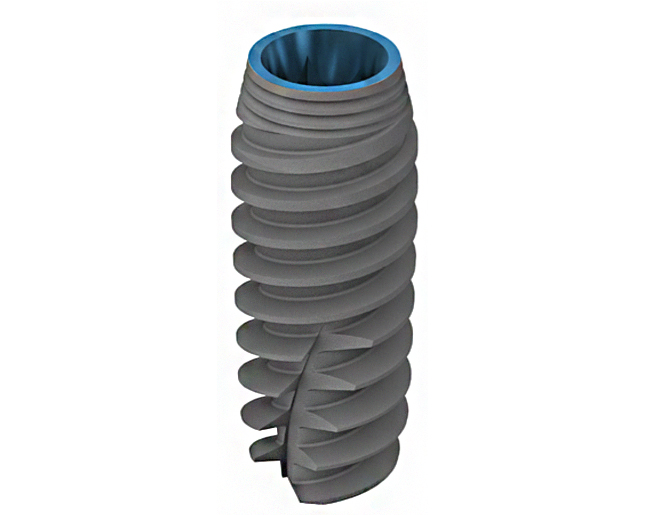

Fix Konisch WD Dental Implant 5.0. RBM Surface, Titanium Alloy - Ti 6AI 4V ELI
Read More

Fix Konisch™ Implant System

Conical Hex Connection with RBM Calcium Phosphate Blasted Surface Treatment

The Fix Konisch™ spiral implant system offers a unique, strong and solid conical-hex connection.
The conical-hex connection enables implants to be used in all indications and regions in the lower and upper jaw.

The Morse Taper Connection minimizes micro movements between the implant and abutment.
The Fix Konisch™ spiral implant system is comprised of a tapered core implant with a spiral tap, promoting increased immediate stability.
With their unique tip and double lead thread design (2×1.2mm), these implants slice through bone unlike conventional self-tapping implants, which scrape the bone away as they tap.

By repositioning bone as it is being inserted, Fix Konisch™ implants can be placed at different angles
for exceptional primary stability and optimal restorative orientation, along with improved esthetics and a better loading distribution.


All Fix Konisch™ implants feature the RBM surface treatment proven to achieve the desired roughness levels needed for optimal osseointegration, increase the rate of Bone to Implant Contact (BIC) and attain the highest implant surface purity levels.

Fix Konisch™ Advantages:

  • RBM Surface Treatment
  • High Primary Stability, Even in Type IV Bone
  • Self-Tapping
  • Double Lead Threads (2 X 1.2mm)
  • Redirecting Capability for more Accurate Implant Placement
  • Built-In Platform Switching
  • Strong Fix Konisch™ Connection
  • Requires Minimally Invasive Surgery
  • Immediate Function / Loading Capability in all Bone Types
 L-8mmL-10mmL-11.5mmL-13mmL-15mmL-16mmL-18mm
ND- 3.0mm FKND1030FKND1130FKND1330 FKND1630FKND1830
SD- 3.5mmFKSW0835FKSW1035FKSW1135FKSW1335FKSW1535 FKSW1835
WD- 4.3mmFKSW0843FKSW1043FKSW1143FKSW1343FKSW1543 FKSW1843
WD- 5.0mmFKSW0849FKSW1049FKSW1149FKSW1349FKSW1549 FKSW1849
