ND Fix Konisch

ND Fix Konisch™

Conical-Hex Connection Ø3, Narrow Diameter for narrow ridges and tight spaces

Scan body | For Intra-oral and Desktop Scanner

ND Fix Konisch™
Scan Body 7mm


ND Fix Konisch™
Scan Body 10mm

Catalog No.MND0088MND0089
Retaining Screw IncludedMND0001MND0001
MaterialTI 6Al 4V ELITI 6Al 4V ELI
DimensionsH1: 7 mm
W: 4.2 mm
L: 6.7 mm
H1: 10 mm
W: 4.5 mm
L: 6.9 mm

Ti Bases

Anti Rotation
ND Fix Konisch™
Ti Base Anti Rotation

Free Rotation
ND Fix Konisch™
Ti Base Free Rotation

Angular Anti Rotation
ND Fix Konisch™
Ti Base Anti Rotation

Catalog No.MND1004MND1008Catalog No.MND1017
Retaining Screw IncludedMND0001MND0001Retaining Screw IncludedMND0001
MaterialTI 6Al 4V ELITI 6Al 4V ELIMaterialTI 6Al 4V ELI
DimensionsH1: 5.4 mm
H2: 3.9 mm


D1: 2.9 mm
D2: 3.8 mm
W: 0.5 mm
GH: 1.5mm
H1: 5.4 mm
H2: 3.9 mm


D1: 2.9 mm
D2: 3.8 mm
W: 0.5 mm
GH: 1.5mm
DimensionsH1: 5.4 mm
H2: 3.9 mm
H3: 1.5 mm
A: 45°
D1: 2.9 mm
D2: 3.8 mm
W: 0.5 mm
GH: 1.5mm
Intended UseSingle UnitBridgeIntended UseSingle Unit /
Angle Correction

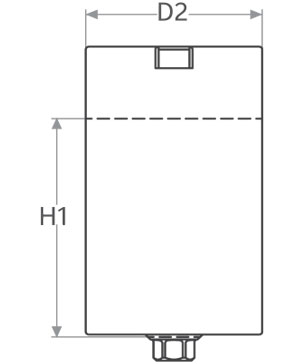

Ti Blanks | For Medentika PreFace Holders

ND Fix Konisch™
Pre Milled
MDTK Ti Blank
11.5mm

ND Fix Konisch™
Pre Milled
MDTK Ti Blank
15.8mm

Catalog No.MND1111Catalog No.MND1115
Retaining Screw IncludedMND0001Retaining Screw IncludedMND0001
MaterialTI 6Al 4V ELIMaterialTI 6Al 4V ELI
DimensionsH1: 15.4 mm
D2: 11.5 mm
DimensionsH1: 15.4 mm
D2: 15.8 mm
Intended Usecustomized abutment
for single unit
Intended Usecustomized abutment
for single unit
